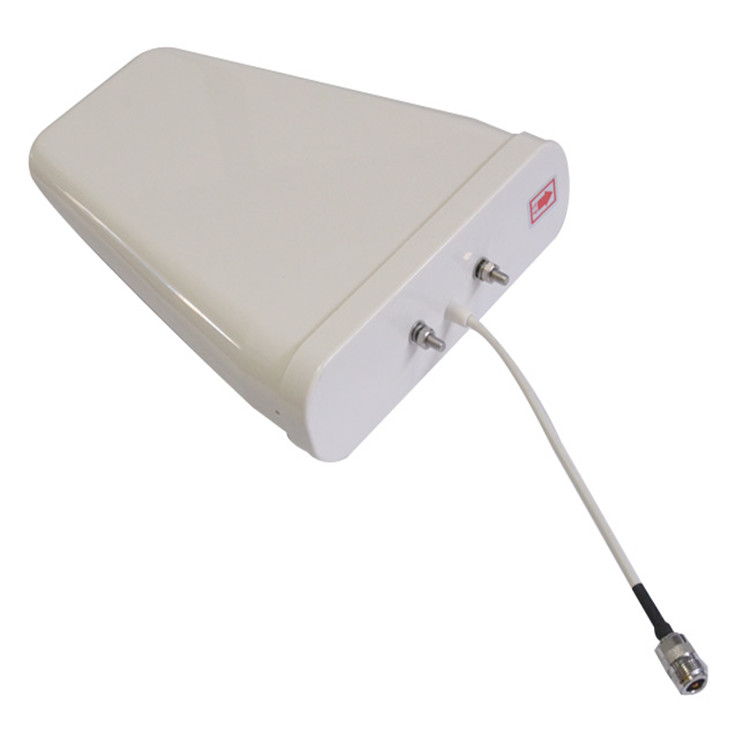

Log-periodic antenna
log-periodic antennas are widely used and efficient. It has a high efficiency almost expected value and better directivity, easy site construction and easy maintenance compared with other high gain antennas.
Download

Electrical parameters:

1.Frequency range: 806-9600MHz 1710-2690MHz

2.Polarization: vertical

3.Gain:8.5±1dbi(806-960MHz) 9.5±1dbi(1710-2690MHz)

4.Horizontal half power beam width: 75±10°, 70±15°

5.Vertical half power beam width: 55°(806-960MHz), 50°(1710-2690MHz)

6.Front-to-back ratio:>15dB

7.VSWR: ≤1.5

8.Third order intermodulation: <-107dBm

9.Input impedance: 50Ω

10.Power capacity: 50W

11.Anti-lightning protection: DC ground


Product feature:

log-periodic antennas are widely used and efficient. It has a high efficiency almost expected value and better directivity, easy site construction and easy maintenance compared with other high gain antennas.
